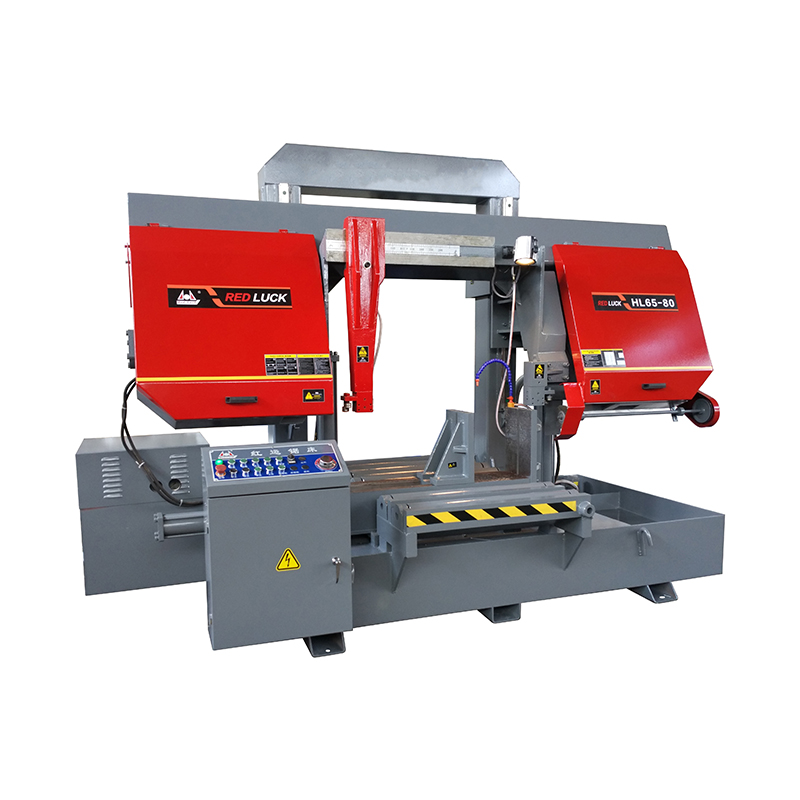

Gantry Horizontal Metal Band Saw: Processing Heavy-Duty Beams and Billets

Cutting large-scale steel beams, solid billets, and heavy structural sections is a task that comes with unique challenges. The material’s weight, cross-sectional size, and the requirement for a neat finish all call for a machine engineered specifically to handle these conditions. The gantry horizontal metal band saw, with its purpose-built design features, is a common choice for such applications, as it aligns with the demands of processing heavy-duty metal components.

Key Challenges in Heavy-Section Metal Cutting

Working with materials of substantial dimensions means navigating several physical hurdles that can impact both efficiency and cut quality.

Controlling Mass and Vibration: Heavy workpieces exert significant forces during clamping and cutting. A machine must have enough structural heft and integrity to absorb these forces without compromising the precision of the cut. If vibration or deflection occurs, it can lead to uneven edges or blade wear, disrupting the workflow.

Managing Heat and Chip Accumulation: Cutting through thick, solid metal generates high levels of heat and large volumes of chips. Without effective handling of both, the blade can overheat, losing its sharpness or even warping. Chips that pile up around the cutting area can also interfere with the blade’s path, making smooth cutting difficult.

Ensuring Cut Consistency: Achieving a straight, square cut through a thick section requires steady feed pressure and consistent blade support throughout the entire cutting process. Any deviation in blade tracking or feed rate can result in cuts that are not square, which can create problems in subsequent fabrication steps where precise fitting is essential.

Design Features Tailored to Heavy-Duty Tasks

Gantry horizontal metal band saws designed for heavy-duty use incorporate specific elements to address the challenges of cutting large materials, ensuring reliable performance even in demanding conditions.

Sturdy Gantry Frame Construction: The main frame of these saws is typically a thick, ribbed, welded structure. This design creates a stable base that maintains alignment between the blade and workpiece, even when under heavy loads. The rigidity of the frame prevents deflection, which is crucial for keeping cuts straight and consistent.

Effective Hydraulic Clamping Systems: Multiple hydraulic vises with strong clamping force are used to secure the workpiece. These vises are positioned strategically to prevent any shifting or rotation during cutting—an important factor for both operator safety and cut accuracy. Firm clamping ensures the workpiece stays in place, even as the blade exerts pressure during the cut.

Reinforced Blade Guidance: The guide arms that hold the blade close to the workpiece are built to be robust. This close, solid support helps the blade resist twisting, maintaining its path throughout the cut. Proper blade guidance not only improves cut quality but also extends the life of the blade by reducing unnecessary wear.

High-Capacity Cooling and Chip Handling: Large coolant systems are integrated to keep the cutting area cool, controlling heat buildup at the blade-workpiece interface. These systems work alongside durable chip conveyors that remove chips from the cutting zone continuously. Keeping the area clear of chips ensures the cutting process can proceed without interruptions, maintaining efficiency.

Typical Application Scenarios

Gantry horizontal metal band saws are widely used in environments where heavy metal sections are processed as foundational materials. Common applications include preparing structural steel for building construction and industrial frameworks, cutting billets and round bars for forging or machining operations, and processing large-diameter tubing and profiles for heavy equipment manufacturing. In these settings, the ability to produce clean, square cuts is vital, as it streamlines downstream fabrication steps such as welding, drilling, and assembly.

For operations that regularly work with beams, billets, and other heavy metal sections, a gantry horizontal metal band saw designed for heavy-duty use offers a reliable solution. Its structural strength, secure clamping, and stable blade guidance are all crafted to meet the demands of cutting large-dimension metal, supporting consistent and efficient performance in challenging work environments.
